World's First reflowable Gbps Isolator Chip

Top Page > Products > Gbps Isolator > General Purpose Isolator
Gbps Isolator Logo

General Purpose Gbps Isolator Chip

(Digital Isolator)

World's first 40Gbps Isolator Chip


Overview

Channel Direction Picture Speed

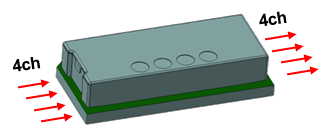

4ch uni-directional General Purpose Gbps Isolator Chip (Digital Isolator)

P/N: APIS4CU
10Gbps /ch

40Gbps total

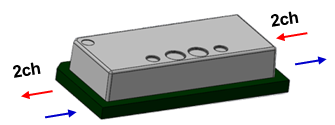

2ch bi-directional General Purpose Gbps Isolator Chip (Digital Isolator)

P/N: APISU31-GP
10Gbps /ch

20Gbps total


Specifications

Parameters Values / Descriptions
Signal Supported - LVDS
- DispalyPort
- DVI
- TMDS
- any NRZ (Non-Return to Zero) & DC-balanced signal
Signal rate (/ch) 50Mbps (min.) 10Gbps (max.)
Signal rate (total) 200Mbps (min.) 40Gbps (max.) APIS4CU
100Mbps (min.) 20Gbps (max.) APISU31-GP
Isolation 5000V RMS for 1 minute
Leakage <0.032uA AC 264V RMS, at 60Hz
(compliant with IEC60601-1, type B/BF/CF Applied Parts)
External Creepage 8.5mm
Operating temperature ~85degree
Package size 8.0 x 16.5 x 3.6 mm SMT, reflowable

Evaluation Board for General Purpose Isolator Chip

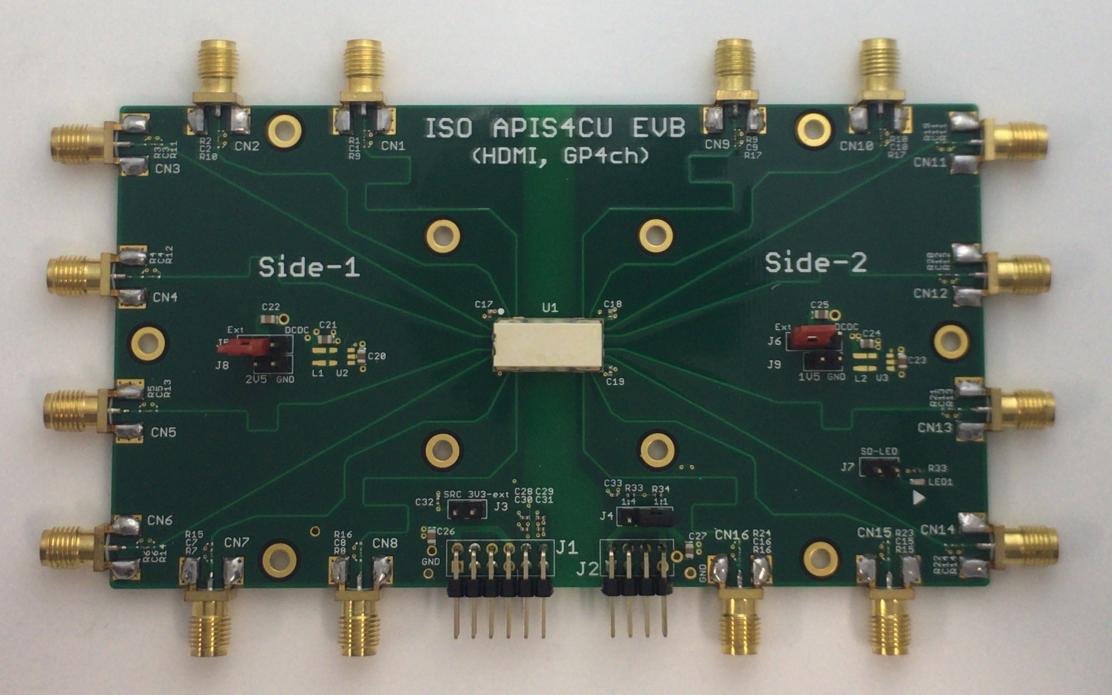

APIS4CU Evaluation Board
(P/N: APIS4CU-SMA-EVB)
General Purpose Isolator Chip APIS4CU Evaluation board with SMA connectors

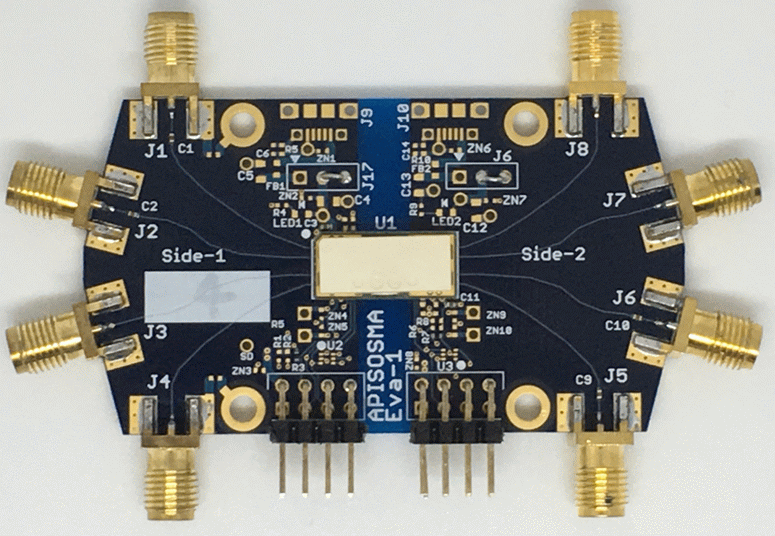

APISU31-GP Evaluation Board
(P/N: APISU31-GP-SMA-EVB)
General Purpose Isolator Chip APISU31-GP Evaluation board with SMA connectors


Waveform Test of the General Purpose Isolator Chip

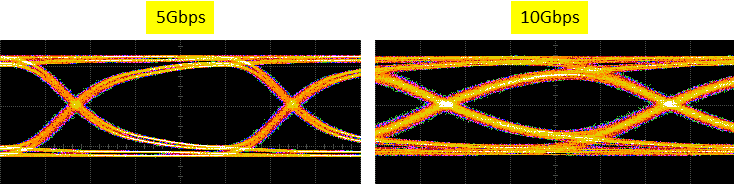

100Mbps to 10Gbps waveform result with General Purpose Digital Gbps Isolator Chip Evaluation board

Order Information

P/N (Part Number) List
Item Picture Part Number Status
4ch, 40Gbps Isolator General Purpose Gbps Isolator Chip (Digital Isolator) APIS4CU In Production
Evaluation Board
(SMA Connectors)
General Purpose Gbps Isolator (Digital Isolator) Chip Evaluation Board with SMA Connectors APIS4CU-SMA-EVB Available

2ch, 20Gbps Isolator General Purpose Gbps Isolator Chip (Digital Isolator) APISU31-GP In Production
Evaluation Board
(SMA Connectors)
General Purpose Gbps Isolator (Digital Isolator) Chip Evaluation Board with SMA Connectors APISU31-GP-SMA-EVB Available

Contact Info

For more information,
   - Technical Specification
   - Quotation Request
   - etc.
Email: sales02@advancedphotonics.co.jp
