USB 3.0/2.0/1.x (including 480Mbps) Isolation

Top Page > Products > Gbps Isolator > USB 480Mbps Isolation
Gbps Isolator Logo

USB 3.0/2.0/1.x Isolation

USB 3.0/2.0/1.x Isolation Board

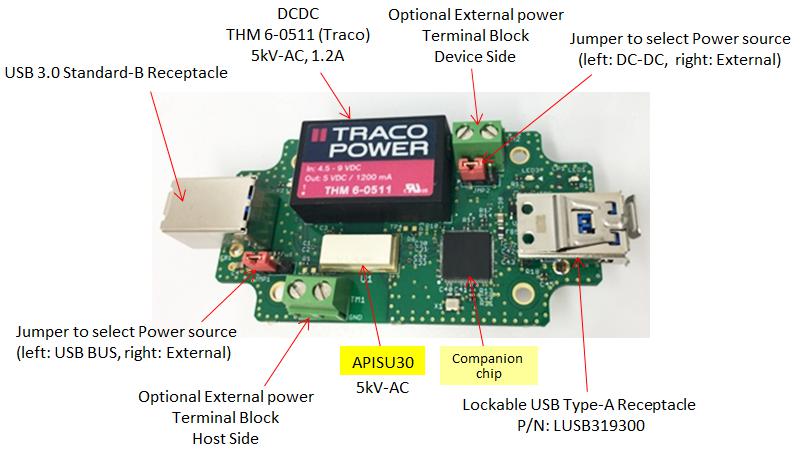

USB 480Mbps Isolation board detailed exlanation

Plug and Play Test with USB Devices/Hubs

Plug and Play Test using USB 3.0 Isolator ecaluation board
USB 3.0/2.0/1.x
Devices
Picture Part
Number
Test
Result
usbview.exe
Decoded Info

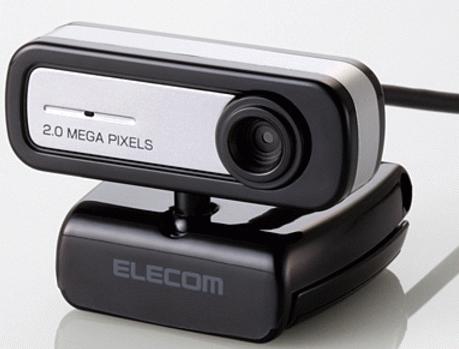

HighSpeed Webcam USB 3.0 Isolator operation test with USB Camera Module 1 UCAM-C0220FBBK
(Elecom)
Download
HighSpeed Webcam USB 3.0 Isolator operation test with USB Camera Module 1 Webcam 5M 1080p
(AMAKZH)
Download
HighSpeed I2C/SPI Protocal Analyzer USB 3.0 Isolator operation test with USB Beagle i2c/spi Protocal analyzer TP320121
(Total Phase)
Download
FullSpeed
Data Acquisition
USB 3.0 Isolator operation test with USB FullSpeed Data Acquisition device USB-8451
(National Instruments)
Download

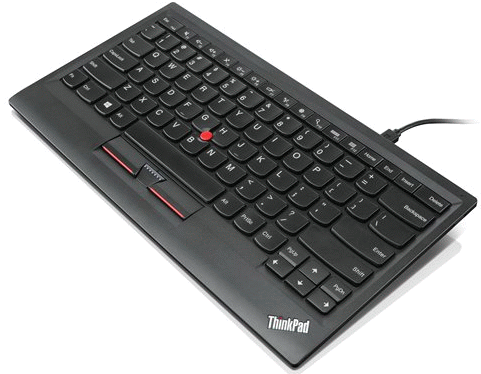

FullSpeed Thinkpad keyboard USB 3.0 Isolator operation test with USB Camera Module 1 0B47208
(Lenovo)
Download
LowSpeed
USB Mouse
USB 3.0 Isolator operation test with USB LowSpeed Mouse 265986-011
(HP/Logitech)
Download
SuperSpeed
4k Camera Module

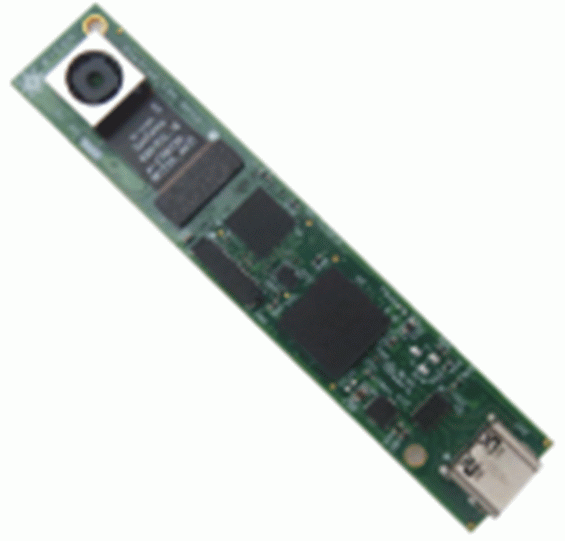

USB 3.0 Isolator operation test with USB Camera Module 1 See3CAM_130
(e-con)
Download

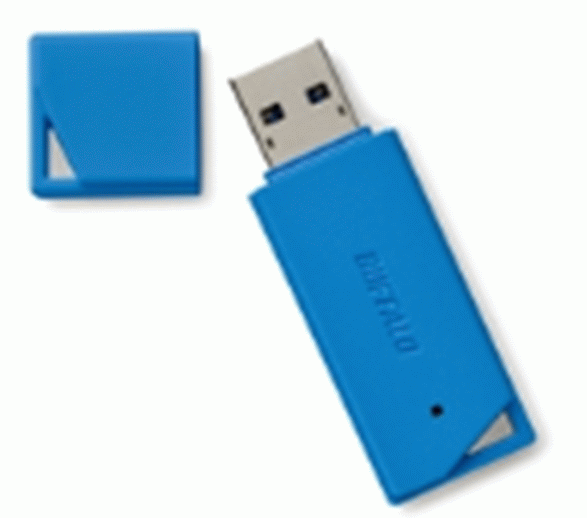

SuperSpeed USB Thumb USB 3.0 Isolator operation test with USB memory RUF3-K8GA-BL
(Buffalo)
Download

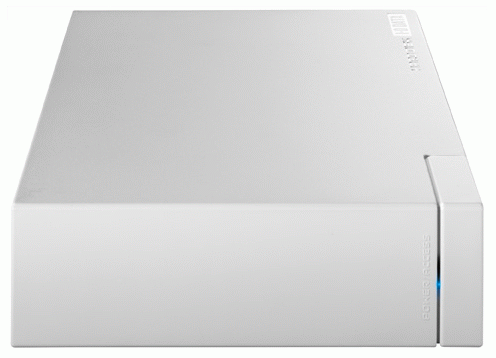

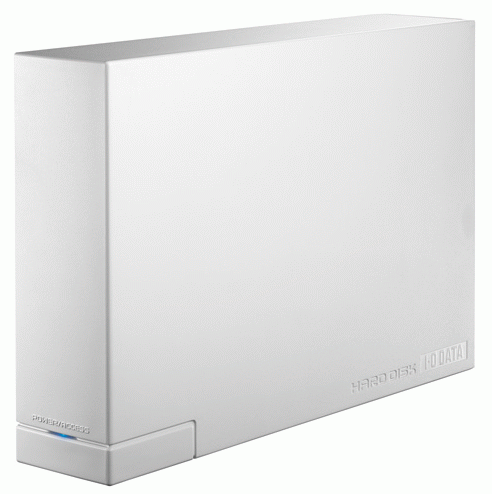

SuperSpeed Hard Disk USB 3.0 Isolator operation test with USB External HD     USB 3.0 Isolator operation test with USB External HD HDCL-UTE2W
(I-O Data)
Download

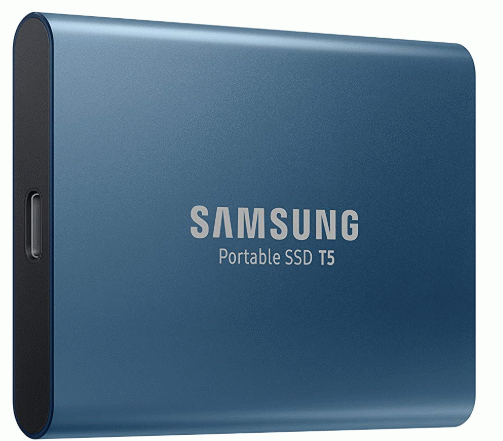

SuperSpeed SSD Drive USB 3.0 Isolator operation test with USB External SSD Drive T5 MU-PA500B
(SAMSUNG)
Download
USB 3.0 HUB
SS/HS/FS/LS

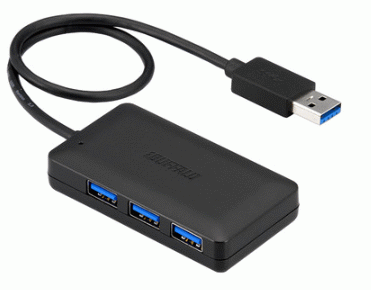

USB 3.0 Isolator operation test with USB 3.0 HUB BSH4U22U3BK
(Buffalo)
Download
USB 3.0 HUB
SS/HS/FS/LS

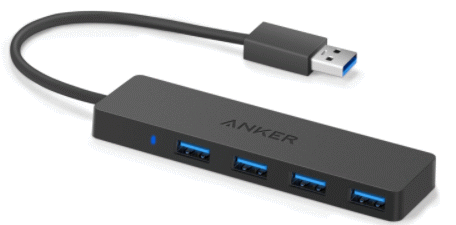

USB 3.0 Isolator operation test with USB 3.0 HUB A7516
(ANKER)
Download

Order Information

P/N (Part Number) List
Item Picture Part Number
USB Isolation board
Supports:
SuperSpeed   5Gbps
HighSpeed 480Mbps
FullSpeed     12Mbps
LowSpeed   1.5Mbps

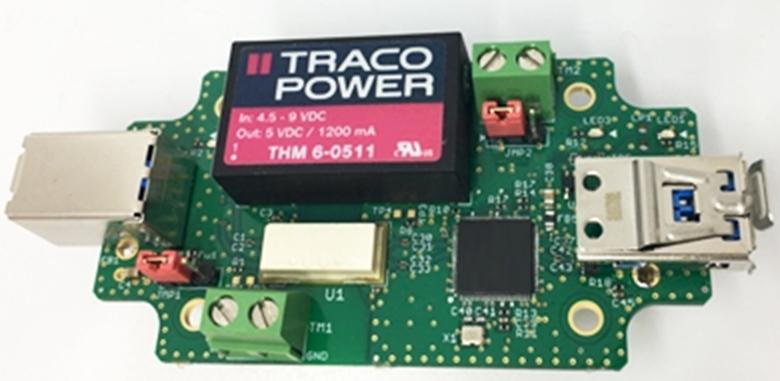

USB 480Mbps Isolation board APISU30-F6-USBCN
USB Isolation board

    the same as above,
only without Traco DCDC

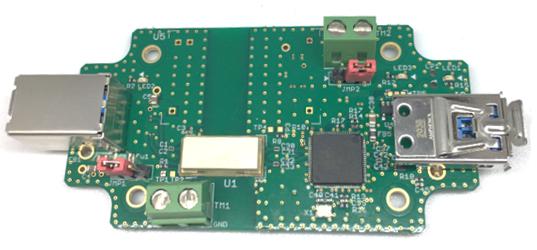

USB 480Mbps Isolation board APISU30-F6-USBCN-NODC
Chipset

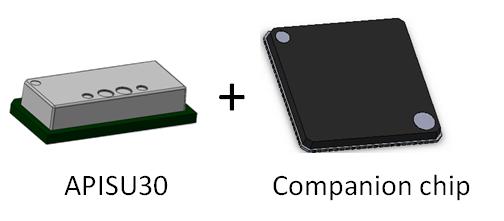

APISU30 + CompanionChip
(design your own board)
USB 480Mbps Isolation board (Please ask)

Contact Info

For more information,
   - Technical Specification
   - Quotation Request
   - etc.
Email: sales02@advancedphotonics.co.jp
