World's First HDMI2.0 Isolator Chip

Top Page > Products > Gbps Isolator > HDMI Isolator
Gbps Isolator Logo

HDMI Isolator Chip (TMDS)

(Galvanic Isolation)

World's first reflowable HDMI 2.0 Isolator Chips solution

HDMI Isolator (Digital Isolator) picture

Specifications

Parameters Values / Descriptions
HDMI TMDS signal rate 10Gbps   (max.) per lane
40Gbps   (max.) totally
Compatibility HDMI 1.0-1.4 Compatible
HDMI 2.0 Compatible
HDMI 2.1 Compatible partially
Resolution Supported Examples:
7680 x 4320 8K   30Hz
5120 x 2880   5K   60Hz
3840 x 2160 4K 120Hz
2560 x 1440 1440p 240Hz
1920 x 1080 1080p 240Hz
1280 x 720   720p 240Hz

(Uncompressed 24 bit/px, RGB or Y′CBCR 4:4:4 assumed)
Isolation 5000V RMS for 1 minute
Creepage / Clearance 6.25mm / 6.25mm
   ( IEC60601-1 compliant, 1MOPP & 2MOOP, 250V-AC)
Leakage <0.032uA
  Condition: 264V-AC, at 60Hz
  ( IEC60601-1 Compliant, type B/BF/CF Applied Parts)
Operating temperature ~85degree

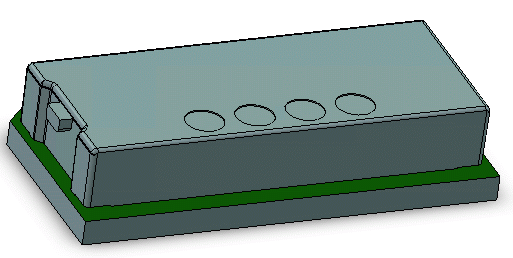

Package size 8.0 x 16.5 x 3.6 mm SMT, reflowable

Isolation for other Pins
DDC   (for EDID, HDCP)
HPD
up to 1MHz
Hot Plug Detect        
Isolation for these pins acheived by other low speed off-the-shelf isolators


TUV & cTUVus Certifications

TUV-R Certificate of Isolators
Certificate No.: R 50604070
cTUVus NRTL Certificate of Isolators
Certificate No.: CU 50604072

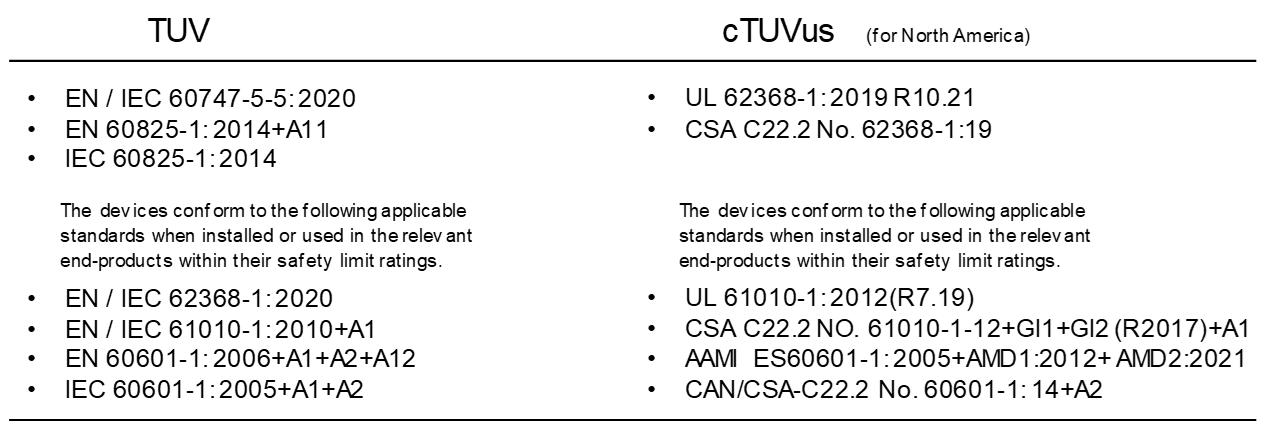

TUV & cTUVus Certifications
* For details of Certificates and CDF, please contact sales02@advancedphotonics.co.jp

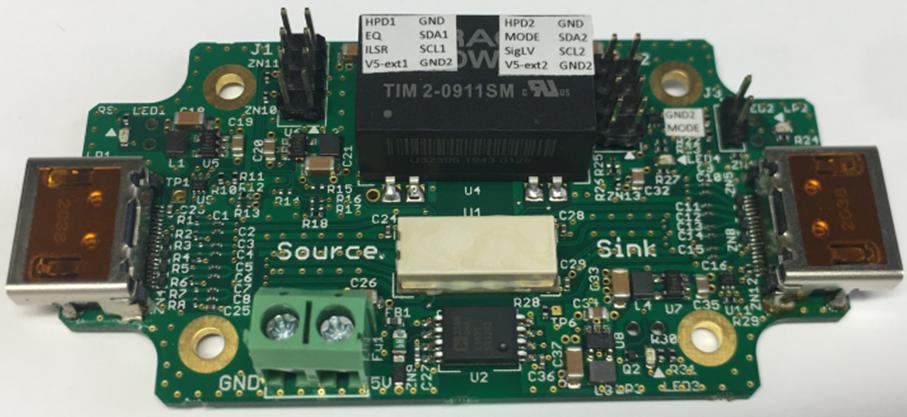

HDMI 2.0 Isolator Evaluation Board

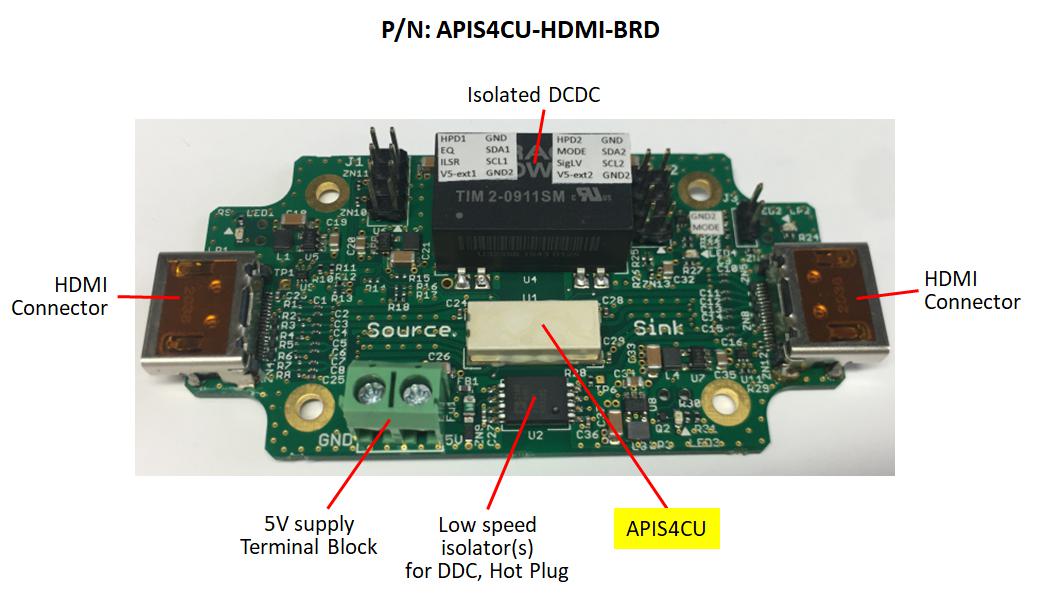

-    Board overview

HDMI 2.0 Isolator Chip

* Schematic, BOM and layout files for PCB design available per request.

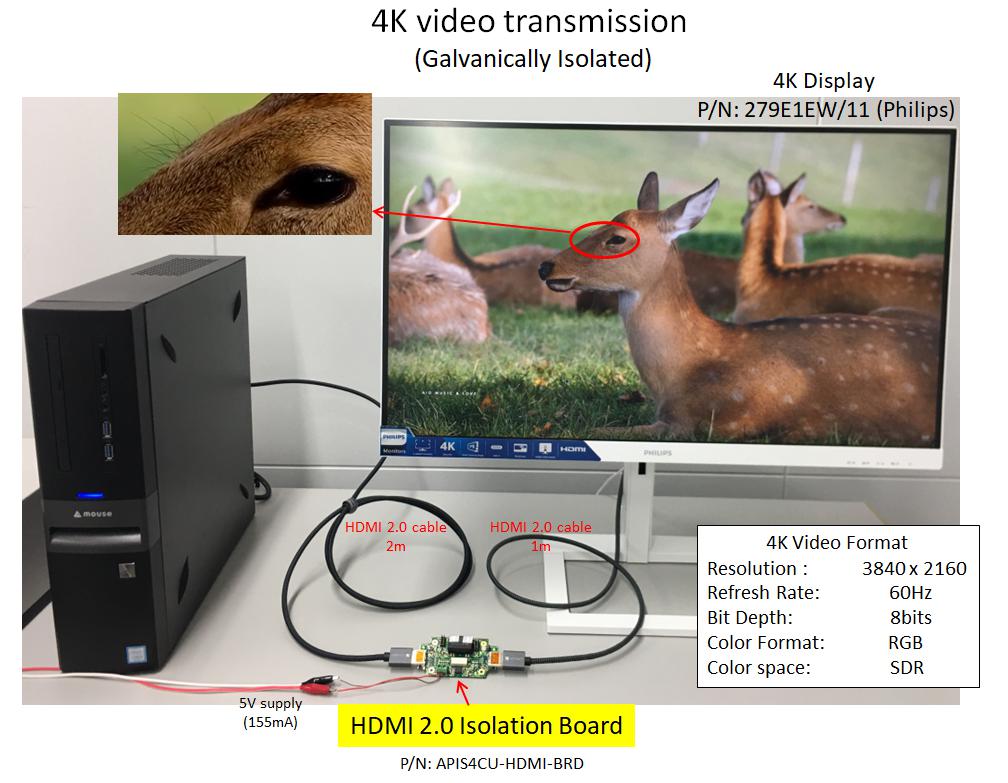

-    4K video transmisison with HDMI 2.0 isolation board




Order Information

Item Picture P/N Status
HDMI 2.0 Isolator Chip
(TMDS)
HDMI 2.0 Isolator Chip APIS4CU In Production
HDMI 2.0 Isolator EVB
HDMI 2.0 Isolator Chip Evaluation Board with HDMI Connectors APIS4CU-HDMI-BRD In Production



Technical Resources

We provide the following technical documents to facilitate our customers' design.

Contact Info

For more information, Email: sales02@advancedphotonics.co.jp
